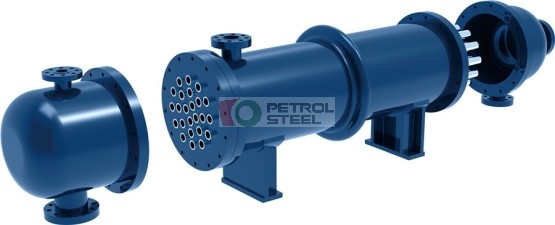

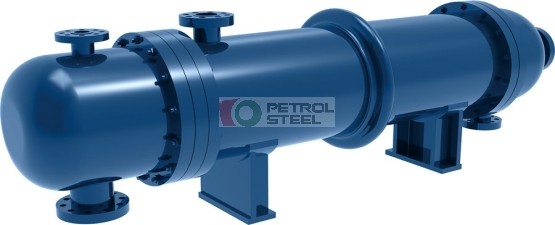

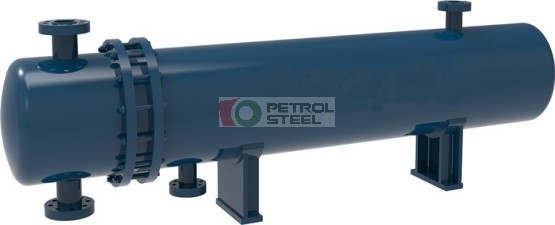

Heat Exchanger
Heat ExchangerHeat ExchangerHeat ExchangerHeat Exchanger

Heat Exchanger

  • 产品编号:3
  • Steam Heater
  • Titannium Heat Exchanger
  • High Pressure Hear Exchanger
  • High Pressure Vessel
  • Heat Exchanger  , High Pressure Vessel  , Steam Heater  , Titannium Heat Exchanger
    询价 发送邮箱

    产品说明

    PESCO Heat exchanger is equipment widely used both upstream and downstream facilities, built for efficient heat transfer from one medium to another. Heat exchangers are classified by flow arrangement, parallel flow, and counterflow. Parallel flow (current) is the flow when two fluids enter the exchanger at the same end and travel parallel to one another to the other side. Counterflow (countercurrent) is when two fluids enter the exchanger from opposite ends.

    Coolers:
    Air-cooled
    Cooling towers

    Commonly used types:
    Shell and tube
    Plate
    Plate fin
    Air-cooled

    In oil and gas facilities, the following types are commonly used:

    Commonly used:
    Bath heaters
    Indirect

    Fluid-fluid:
    Shell and tube
    Double pipe
    Plate and frame

    Uses of heat exchangers may vary depending on the process requirements, such as heat and cool fluids, heat recovery, separation, reboiling, condensing.

    Shell And Tube Heat Exchanger
    Shell and tube heat exchanger consists of a bundle of tubes and shells. Heat transfer occurs when one fluid that needs to be heated or cooled flows through the tubes and the second fluids runs over the tubes that provide the heat or absorbs the heat required.

    Configuration
    The configuration depends on each process requirements. The main consideration for the design should be fluid involved, corrosion potential, problems of cleaning, pressure drop, heat transfer efficiency, tubes usually 20 ft. and 40ft.

    Shell And Tube Heat Exchanger

    heat exchanger


    Basic types of shell and tube heat exchangers are Fixed Tube Sheet, Floating Head, U-Tube.

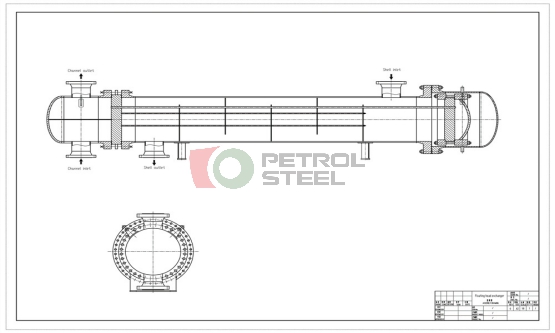

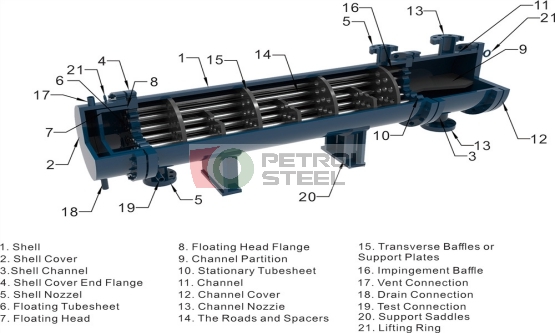

    Floating Head heat exchanger

    Floating Head heat exchanger

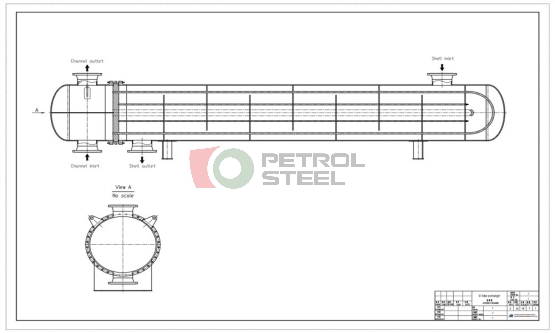

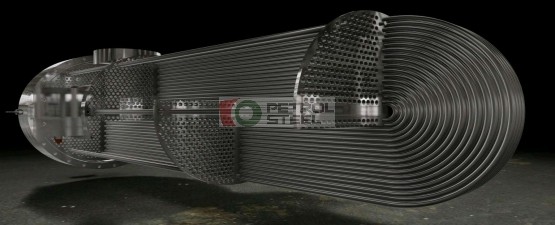

    U Tube Heat Exchanger

    U tube Heat Exchanger

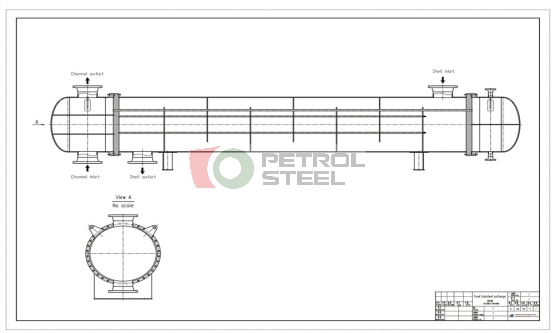

    Fixed tube heat exchanger

    Fixed tube heat exchanger


    ONE OF THE KIND, MILLIONS OF CHOICES
    SUPERIOR QUALITY
    PROMPT DELIVERY
    FAVORABLE FEEDBACK
    ALL AVAILABLE IN PESCO
    SELECT PESCO, YOU WILL BE RIGHT


    For more info and price of Heat Exchanger and the specifications, please send us inquiry, you will have quick reply soon.
