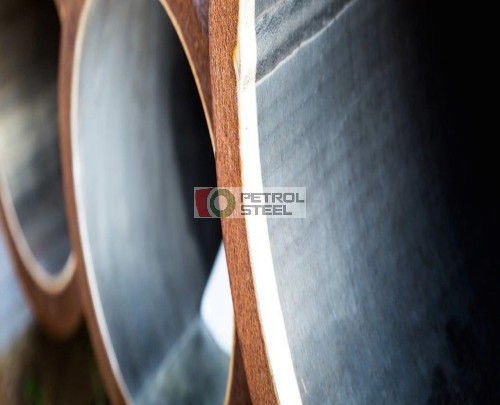

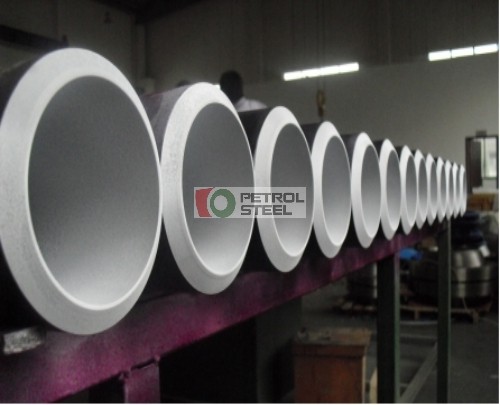

CRA CLAD Pipe

产品说明

PETROL STEEL CO., LTD is the leading manufacturer and stockiest of CRA CLAD Pipe API 5LC in China.

Our CRA CLAD Pipe API 5LC Specifications:
Length: up to 12m
Diameter: 14"- 56"(355 - 1,422 mm)
Wall thickness of the base material:
0.375"- 2.5"(9.5 - 63.5 mm)
Thickness of cladding: 0.06" - 0.16"
(1.5 - 4.0 mm)

The Base Material of our Pipes:
ASTM A53 B, A106 Gr. B, API 5L B, X42, X52, X56, X60, X65,X70; ASTM A333 GR.6, GR.3 Stainless Steel,Titanmium, Superalloys
Cladding Pipes Thickness of Base Pipes: 6mm-75mm;
OD of Pipes: DN125 to DN600 (130mm to 600mm)
Length of Pipes: Up to 12m

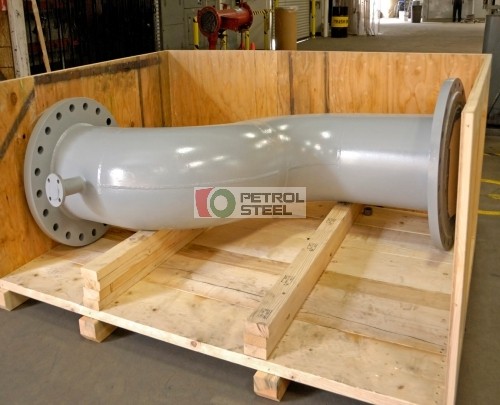

Process of Bending: Hot Induction Bending and Cold Bending
Bend Radius: 3D to 10D or on customer’s request
Bend Angles: For Cold Bending 1°- 180°/ For Hot Induction : 1°- 100°
Diameter of lined Bends: 4”- 20”
Wall Thickness of Clad Bends: STD - 75mm

A full range of carbon steel grades is available, including the commonly used API 5L and ASTM A516 range, which may also be offered as compliant with sour service requirements.

The CRA layer can be produced to a wide range of specifications, including:

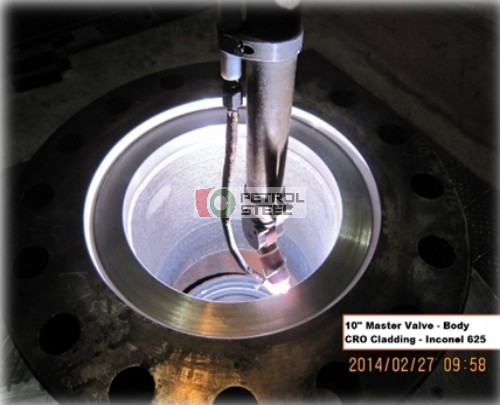

Type 304L lined Pipes, 316L Cladding Pipes, 904L lined Pipes, Alloy 825 overlay Pipes, Alloy 625 Clad Pipes,SA265 Cladded with MONEL UNS N04400,SA105 Cladded with SB127 UNS N04400, SA234 Cladded with SB127 UNS N04400, ASTM A350 LF2 Cladded with UNS N08825,ASTM B564 Cladded with UNS N08825;SCH80S,ASTM A333-GR6,A671-CC65 CL 22 Clad with UNS N08825,ASTM A420 WPL6 Clad with UNS N08825

The following CRA CLAD Pipe, API 5LC clad Pipes and API 5LD clad Pipes items are what we can manufacture and supply.

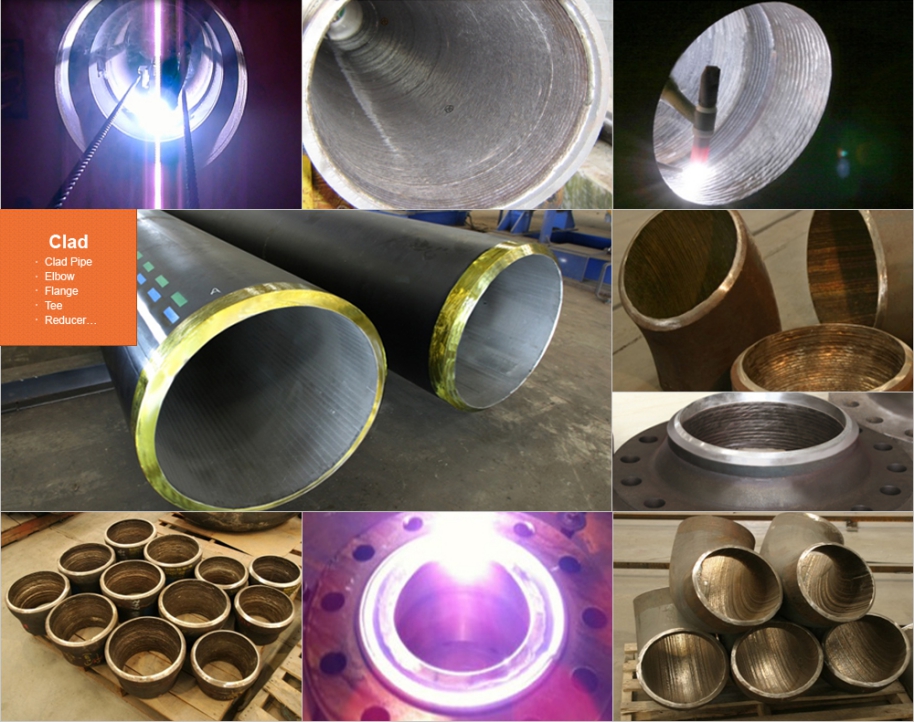

API 5LC lined Piping, API 5LD cladding Pipes, Superalloys cladding tubes, Super duplex Clad tubing, api 5lc line pipe, clad plates, cra pipeline, lined pipe, cra cladding tube, cladding flange dimensions, flange weld overlay, explosion cladded pipe, clad fittings, bending cladding welding, Copper Alloys Clad elbow, Copper Clad Pipes, Titanium alloy Clad bending, Titanium alloy Clad Pipes, Aluminum alloy Clad Pipes, Aluminum lined Pipes, Monel Clad Piping, Nickel Clad tubes, Chrome lined Pipes, Alloy overlay Pipes, Duplex overlay Pipes, Solid CRA pipes, Corrosion Resistant Alloy pipes, Cladding overlay pipes, inconel cladding pipes.

ONE OF THE KIND, MILLIONS OF CHOICES
SUPERIOR QUALITY
PROMPT DELIVERY
FAVORABLE FEEDBACK
ALL AVAILABLE IN PESCO
SELECT PESCO, YOU WILL BE RIGHT

For more info and price of CRA CLAD Pipe and the specifications, please send us the inquiry, you will get the quick reply soon.
