Cavitation Jet Gauging Pig
Cavitation Jet Gauging PigCavitation Jet Gauging PigCavitation Jet Gauging PigCavitation Jet Gauging Pig

Cavitation Jet Gauging Pig

  • Cavitation Jet Propipe
  • High-Pressure Pigging
  • Ultra High-Pressure Jet Gauging Pig
  • Pipeline Cavitation Jet Pigging
  • Cavitation Jet Propipe  , High-Pressure Pigging  , Ultra High-Pressure Jet Gauging Pig  , Pipeline Cavitation Jet Pigging
    询价 发送邮箱

    产品说明


    PETROL STEEL CO., LTD is the professional supplier ( research, development, and export ) of Cavitation Jet Gauging Pig Propipe in the world. And we exported for more than 10 years.



    Cavitation Jet Propipe, High-Pressure Pigging, Ultra High-Pressure Jet Gauging Pig, Pipeline Cavitation Jet Pigging, Internal Surfaces Cleaner, Efficient Well Cleaning Pig, Cavitation Washer, PESCO Hole Jet Cleaner, Caviblaster Cavitation Jetting, Cavitation Bundle Jet Cleaning, Bundle Jet Cleaning, Pipeline Bundle Jet Cleaning

    Cavitation bundle jet cleaning technology

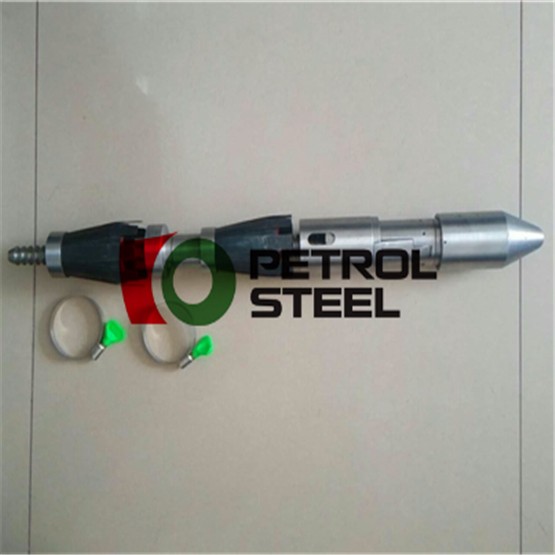

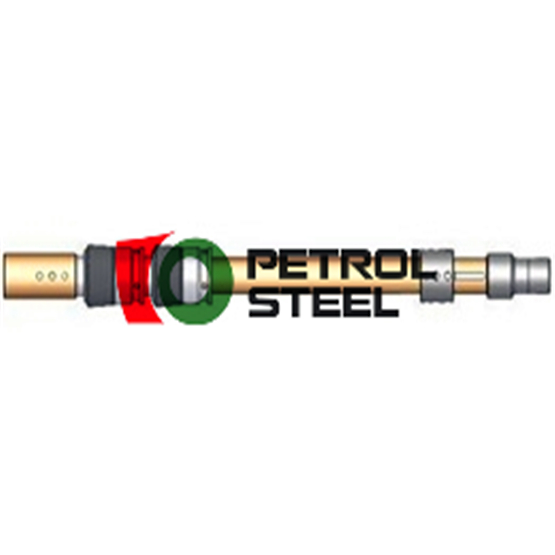

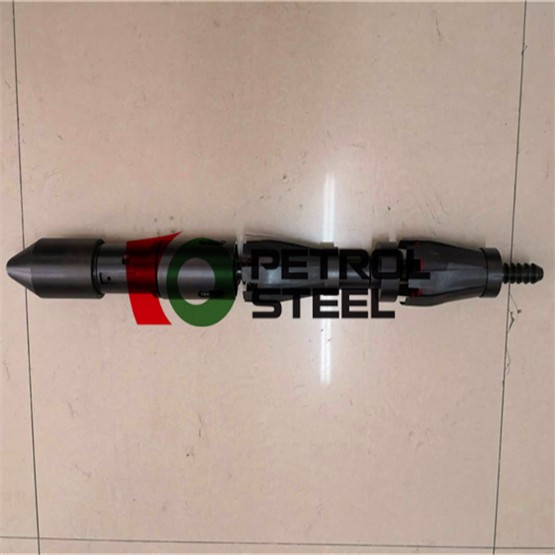

    The working principle: Cavitation jet cleaning technology uses the "cavity effect" principle in the field of fluid mechanics. The Cavitation Jetting Washer in the pipeline moves forward quickly under the push of running water and compressed air. The metal blades on the washer produce high frequency and tremor, and the washer is surrounded by the rapidly rotating vortex, which forms a continuously moving low-pressure area. The flowing water in this area is always in a vaporized state, resulting in subtle The vapor bubble is quickly compressed until it bursts, and a powerful microjet is instantly blasted, and countless microjets converge into a shock wave to completely smash the sediment.

    The advantages of cavity jet cleaning technology:
    The cleaning effect is good: the working principle of the Cavitation Jet Propipe technology is fundamentally different from the cleaning principle of the common Gauging Pig, which can impact the scale layer with greater energy. The Ultra High-Pressure Jet Gauging Pig technology uses the "cavity effect" principle in fluid mechanics, which generates high-speed micro-jets and shock waves during the Internal Surfaces Cleaning Process. A variety of dirt including the oil scale, chemical scale, water scale, rust scale, soft scale, hard scale, viscous scale, etc, can be completely removed.

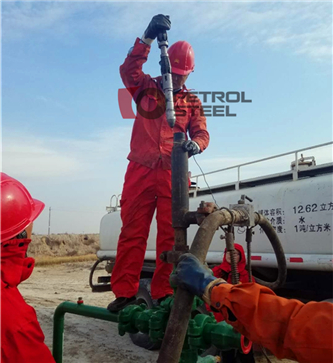

    Fast cleaning speed of the Efficient Well Cleaning Pig: the running time of the Cavitation Jet Gauging Pig in the underground pipeline with a length of 1Km is only about 15 minutes and the running time in the water jacket heating furnace is only about 5 minutes to complete the cleaning task. The longer working distance, the more advantages.

    Long cleaning stroke of the Ultra High-Pressure Jet Gauging Pig: Power water blasts out from the gap of the Ultra High-Pressure Jet Gauging Pig, sweeping away the dirt that has been cleaned in front, without blocking. The common Gauging Pig uses the scraping and squeezing function to remove scale and has high hardness. However, water can easily cause serious clogging of the front dirt and affect the cleaning distance. The single construction distance of Pipeline Cavitation Jet Propipe is limited by its own equipment, only one or two hundred meters.

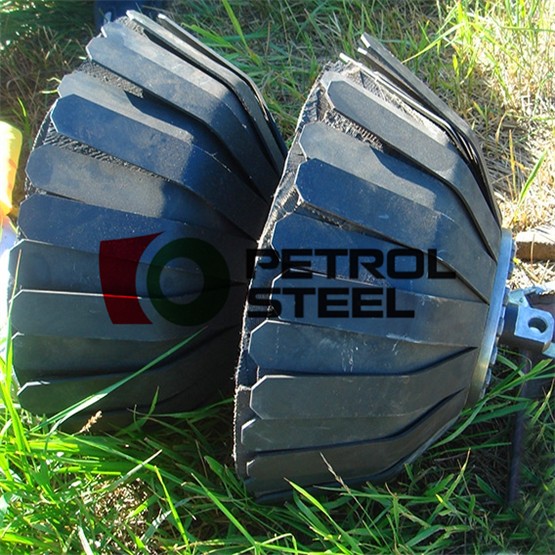

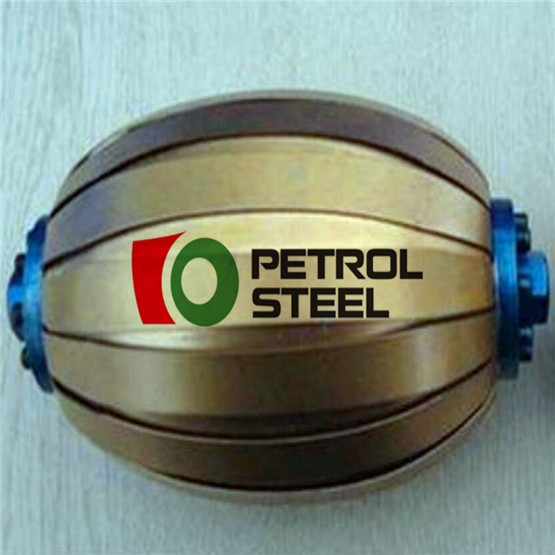

    Strong passing ability and large elastic deformation: the Ultra High-Pressure Cavitation Jet Gauging Pig is composed of flexible blades, and the shrinkage ratio can reach more than 30%. It can clean complex U-shaped tubes and corrugated piping, bellows piping, such as water jacket furnaces with more returned coil tubing. If jamming occurs, the electronic locator can be used to accurately identify and eliminate the jamming position in a short time.

    The wide cleaning range of the High-Pressure Pigging: all pipes of Φ40-1000mm can be cleaned without limitation of length and scale.

    Safety and reliability of the Pipeline Cavitation Jet Pigging: there is no potential danger in normal pressure work. In contrast, the water pressure of high-pressure water jet cleaning reaches 100-200Mpa, which poses a major threat to the personal safety of the construction site personnel.

    The real environmental protection of Cavitation Jet Propipe: Because it is a pure physical cleaning technology, there is no damage to the pipeline and no pollution to the environment.
